content:

1x Pitlock thru axle 12 mm (black), 1x PIT-Key, 1x Code card

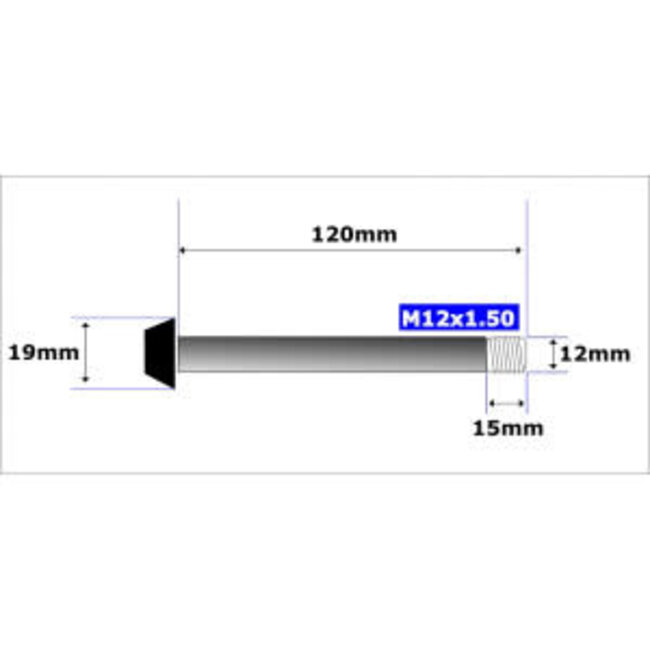

Specifications:

dimensions: 12 x 120 mm (Set 23) / 12 x 125 mm (Set 23K)
installation width: 100 mm
thread length: 15 mm
thread pitch: M12 x 1,5 mm
required contact surface: ø 19 mm
weight: 49 g

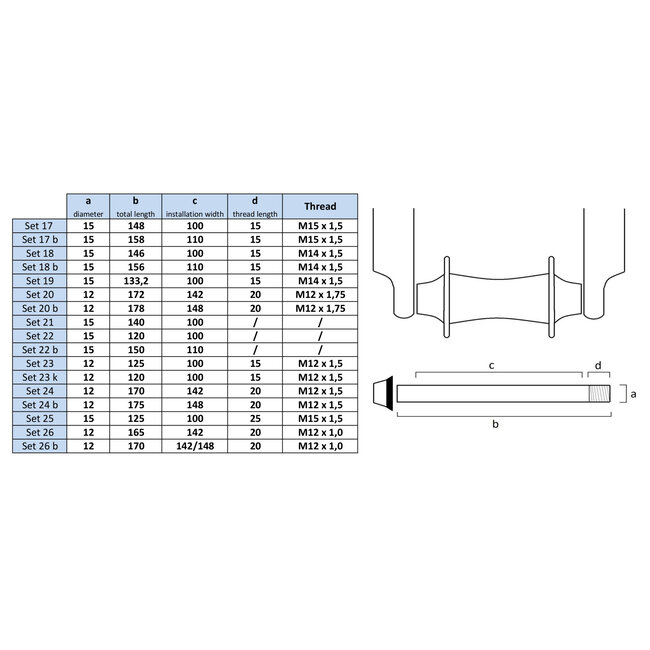

Please compare the original axle on your bike with these dimensions to be sure to choose the correct Pitlock thru axle.

You can use our handy helpsheet for Thru axles.

Material:

Pitlock thru axles are made out of high quality aluminum and stainless steel. The aluminum is coloured by anodization, the stainless steel by physical vapour deposition.

Function:

Replace the original thru axle with the coded Pitlock thru axle to secure your bike wheels against robbery. The lock can be made compatible to any other Pitlock M5/M6 lock, such as those for the seatpost, the ahead stem or the brakes.
