Velo Orange Grand Cru French Threaded Bottom Bracket

Velo Orange Grand Cru French Threaded Bottom Bracket
This item is currently not available.

Details

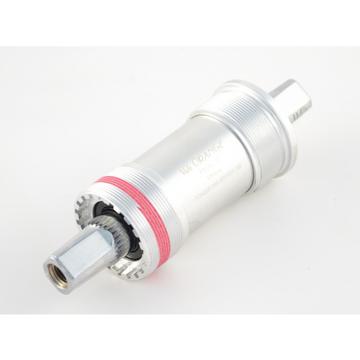

The French thread Grand Cru bottom brackets have oversize sealed bearings. The axles are hollow and made from boron steel. Both cups are aluminum alloy. The bearing are well sealed against dust, mud, and moisture, with four wiper seals at the bearings and two full contact grit shields at the cups.

About 258gm in 110mm. JIS taper. Includes axle bolts. Grand Cru BB are available in spindle lengths to fit most cranks. Generally, it is the crank model, not the frame, that determines spindle length; so, check what spindle length the crank manufacturer recommends or measure your old BB. If between sizes, it's usually wise to choose the longer.

Part Numbers

Option UPC Store SKU
103mm 815667010015 34590
107mm 815667010046 19522
110mm 815667010053 19526
113mm 815667010060 19530
116mm 815667010077 19534
122mm
